Description

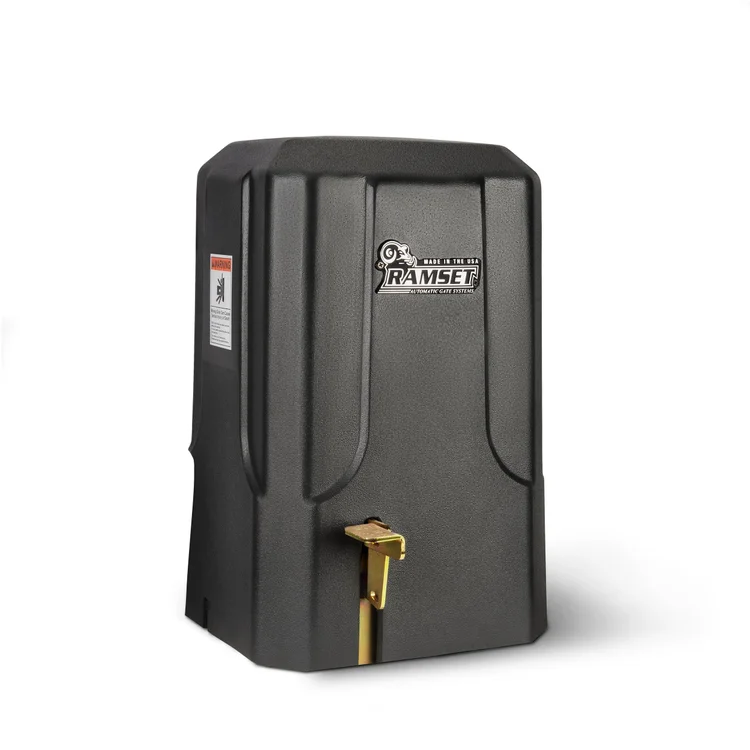

Ram100 – DC Slide Gate Operator
Max gate travel : 35′
Max gate weight: 1,800 lbs.
ETL Listed- UL 325 Compliant
Includes 20′ of chain (two boxes of 10′)
Slow Stop, Soft Start
Allows for smooth gate operation without abrupt stops or harsh start
Easy installation
EP Learn Mode: Created for the convenience of installers to easily install photoeyes.
Left Right Switch: Change the direction of the installation with the switch of a button
Close Delay: Adjustable timer, to meet the requirements of each unique installation
ETL Listed
Our gate operators have been rigorously tested to meet the strict safety standards set forth by the UL 325 industry guidelines. To comply with these standards external entrapment protection devices will be required to meet UL 325 safety requirements. Your installer will recommend the appropriate types of devices based on your specific installation.
Emergency Foot Pedal Release
Ability to manually open you gate in case of an emergency.
One Pass
Allows for gate to close immediately upon entrance.
Smart Home Compatible
Easily connect devices to the gate operator through the relay connection on the board.
| SPECS | Ram 100 DC |
|---|---|
| Class | Residential/ Commercial |
| Max Gate Weight | 1,800 lbs |
| Max Gate Length | 35′ |
| Motor | “BRUSHLESS 24 VDC, 13 AMPS” |
| Gate Speed | 12″ per Second |
| VAC | 115- Single phase |
| Battery Backup System | (2) 7Ah 12VDC Batteries |
| W x L x H | 15″ X 14.5″ X 22″ |
| Shipping Weight | 114 lbs |
